In a world-first, a Kobe University research group led by Associate Professor FUKAYAMA Hiroshi of the Graduate School of Agricultural Science has used rice to successfully illuminate the mechanism by which plants regulate the amount of starch produced via photosynthesis. This knowledge could contribute towards improving the quality and yield of agricultural crops.

These research results were published in the international scientific journal Plant, Cell & Environment on May 14, 2021.

Main points

  • Plants convert carbon dioxide (CO2) into organic substances (such as starch) via photosynthesis. If a plant is growing in conditions where there is an elevated concentration of CO2, the amount of starch it produces increases.
  • CRCT*1 protein levels increase when CO2 concentrations are elevated. This protein has been thought to promote starch synthesis but how it does this was previously unknown.
  • The research group revealed that 14-3-3 proteins*2 play a role in CRCT-mediated regulation of starch synthesis.
  • They indicated the possibility that CRCT moves into and becomes activated in the starch-storing parenchyma cells after being synthesized in the phloem’s vascular bundles.
  • The researchers also revealed that CRCT binds to regulation sites on multiple starch synthesis-related genes and is a transcriptional activator protein.
  • Synthesizing starch is a vital process for plants. The illumination of the regulatory mechanism behind this process will be useful for improving crop productivity and quality.

Research Background

The increased concentration of CO2 in the atmosphere is the main cause of global warming, which is a worldwide issue. However, it has been said that this could benefit plants as they convert CO2 into starch via photosynthesis. If a crop is grown in conditions where there is an elevated concentration of CO2, starch synthesis is accelerated, resulting in vigorous growth and increased yield. CO2-Responsive CCT protein (CRCT) is activated in conditions where CO2 concentration is high, however its function remained unknown. This research group has been investigating these proteins using rice plants, and previously discovered that CRCT is an important protein that regulates starch synthesis. In their latest findings, the group have revealed how CRCT regulates this process, which was not understood until now.

Research Methodology and Findings

Various proteins are required for starch synthesis in plants, including glucose 6-phosphate/phosphate translocator, ADP-glucose pyrophosphorylase, starch synthase and starch branching enzyme. The researchers hypothesized that CRCT regulates the expression of multiple genes corresponding to these starch synthesis-related proteins. Proteins that regulate gene expression are called transcription factors. In many cases, these transcription factors form a complex with another protein. When the researchers analyzed the volume of CRCT inside a plant, they discovered that it can form a complex with some types of protein. To investigate this further, they performed an analysis using an antibody that specifically binds to CRCT, which revealed that CRCT binds to 14-3-3 proteins. From another analysis, this time using green fluorescent proteins, the research group illuminated that CRCT and 14-3-3 protein form a complex inside the nucleus (Figure 1). They also indicated the possibility that CRCT moves into and becomes activated in the starch-storing parenchyma cells after being synthesized in the phloem’s vascular bundles. Furthermore, the researchers revealed that CRCT promotes transcription by binding to regions that regulate the expression of multiple starch synthesis-related genes.

It is known that there is a negative correlation between the expression of 14-3-3 proteins and the amount of starch. However, our results showed that there is a positive correlation between the amount of starch and the expression of CRCT. Consequently, the research group assumes that 14-3-3 protein and CRCT form an inactive complex (Figure 2).

Figure 1: CRCT forming a complex with 14-3-3 protein in the nucleus.

Green fluorescent protein (GFP) was split into the N terminal and C terminal regions. Top row: Fluorescence from the reconstituted GFP was detected when the N terminal region was fused to CRCT and the C terminal region was fused to 14-3-3 protein, and these fusion proteins were expressed in the plant cell, indicating that CRCT can interact with 14-3-3 protein. DsRed is a red fluorescent protein that was used to confirm the genetic transformation. By staining the nucleus fluorescent blue with DAPI, it was possible to observe that the interaction of CRCT and 14-3-3 proteins took place in the nucleus. Middle row: On the other hand, GFP was not detected when CRCT was fused to both termini because CRCT proteins do not bind to each other. Bottom row: When both termini were fused with 14-3-3 proteins, the presence of GFP in the nucleus and cytoplasm indicated that 14-3-3 proteins bind to each other.

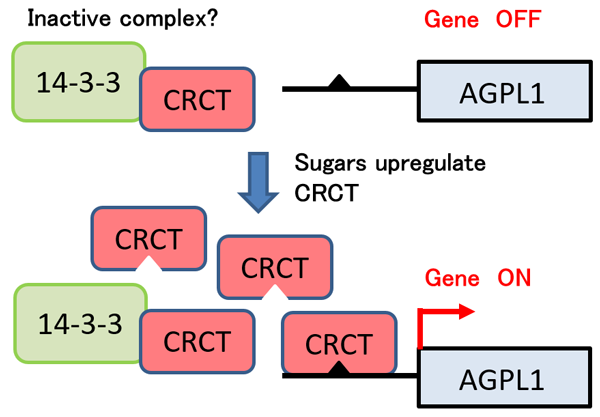

Figure 2: Hypothesized CRCT-mediated mechanism for starch synthesis regulation

CRCT binds with 14-3-3 protein in the nucleus to form an inactive complex. CRCT is then upregulated by sugars that were produced via photosynthesis. It is thought that the CRCT proteins which don’t bind with 14-3-3 proteins bind to the regulation sites on genes related to starch synthesis (such as AGPL1) instead, and promote transcription.

Further Developments

Starch synthesis is indispensable for plants, and CRCT, which regulates this process, is a prime target for efforts to improve crop quality and productivity. In addition, CRCT is a gene that is activated under conditions where there is an elevated concentration of CO2, and this knowledge will be useful for selecting suitable rice cultivars for such environments in the future. Furthermore, similar genes to CRCT have been found in every plant investigated so far. The research group is also currently investigating CRCT function in potato, a staple starch crop.

From an academic standpoint, there are still questions that need to be answered. Looking at the current research results, it can be supposed that CRCT proteins move between cells but the underlying mechanism is not known. Furthermore, it is not understood how CRCT changes its own expression level in response to CO2 concentrations and sugar levels. If the mechanism behind CRCT-mediated regulation of starch synthesis can be fully illuminated, it will be possible to make even greater improvements to agricultural crops.


CRCT stands for CO2-Responsive CCT protein. It is a protein found in plants, the accumulation of which increases if CO2 concentrations are high (or possibly in response to increased sugar concentrations). It is believed to promote starch synthesis.
*2 14-3-3 proteins
A family of proteins that are expressed in the cells of all eukaryotic organisms (plants, animals etc.). They are known to play roles in signal transmission and metabolic regulation among other things.


This research received funding from the following:

  • Japan Society for the Promotion of Science KAKENHI grant (JP22114511)
  • Hyogo Science and Technology Association (31071)

Journal Information

CO2-Responsive CCT Protein interacts with 14-3-3 proteins and controls the expression of starch synthesis-related genes
Hiroshi Fukayama1,*, Fumihiro Miyagawa1, Naoki Shibatani1, Aiko Koudou1, Daisuke Sasayama1, Tomoko Hatanaka1, Tetsushi Azuma1, Yasuo Yamauchi2, Daisuke Matsuoka3, Ryutaro Morita1

1 Department of Bioresource Science, Graduate School of Agricultural Science, Kobe University.
2 Department of Agrobioscience, Graduate School of Agricultural Science, Kobe University.
3 Biosignal Research Center, Kobe University.
*Corresponding author
Plant, Cell & Environment
